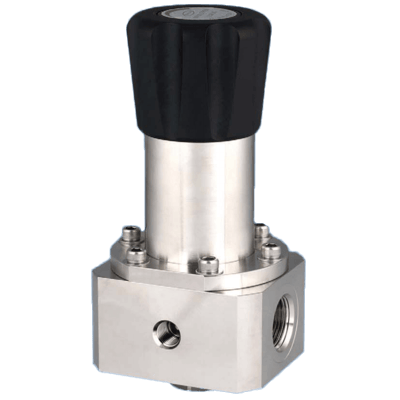

DR70 Series High-Flow & High Pressure Regulator
Brand: DK-LOK
DR70 Series is a regulator most suitable for pipeline application where high flow of water, chemical, liquid, gas, etc. is requested.
Features- Precision control of NPT or BSP 3/4", 1" type regulator
- Drop-prevention function built-in
- Suitable for research labs and industrial control
- Outlet psig: 0 to 1,015 (kPa: 0 to 7,000, bar: 0 to 70)
- Panel mounting bracket #DR70-PMB option
Specifications
Brand
BSP Connection
- 1” BSP Female
- 3/4” BSP Female
Enclosure, Body Material
- 316L Stainless Steel
- Brass
NPT Connection
- 1” NPT Female
- 3/4” NPT Female
Pressure Range
- bar: 0 to 70
- kPa: 0 to 7,000
- psi: 0 to 1,015
Seat / Seal Material
- Valve Seat: Teflon
- Valve Seat: Vespel
Supply Pressure - Maximum
- bar: 350
- kPa: 35,000
- psi: 5,076
