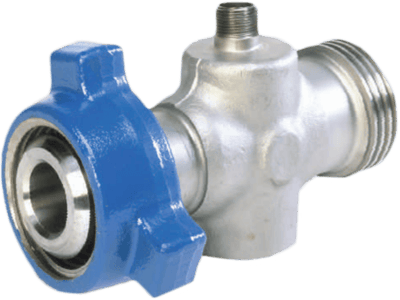

Wing Nut High Pressure Gas Turbine Flowmeter
Brand: Hoffer Flow ControlsWing Nut High Pressure Flow meters, Turbine Flowmeters Gas Service.
Features- Wing Nut High Pressure psi: 15,000 (kPa: 103,421, bar: 1,034) Turbine Flowmeters for gas service
- Typically used for oil well fracturing with nitrogen gas
Specifications
Brand
Approvals & Certifications
- ATEX: EX II 2 GD Ex d TD IIC, IP66/68
- CE
- CSA: Class I, Div. 1, Groups A, B, C, D, Class II, Div. 1, Groups E, F, G, Class III, Type 4X EX D IIC, Class I, Zone 1, IP66
- FM: Class I, Div. 1, Groups A, B, C, D, Class II/III, Div. 1, Groups E, F, G, Type 4X
- IEC EX D IIC IP68
Bearing Material
- Ceramic Hybrid Ball Bearings
- Tungsten Carbide Sleeve Bearing
Enclosure, Body Material
- 1” to 2” (A286), 3” (4130 High Chrome): Alloy Steel
Environmental Protection
- IP66
- IP68
Materials of Construction
- Internals: Stainless Steel
Temperature Range
- -267.8° to 148.9° C (-450° to 300° F)
