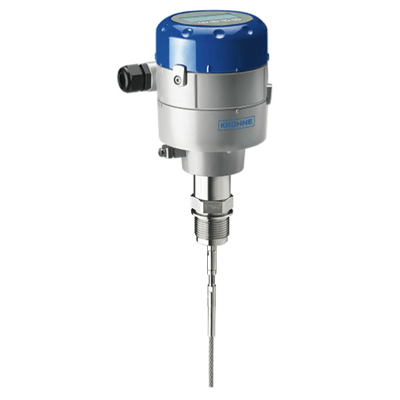

OPTIFLEX 1100 Guided Radar TDR Level Meter

Brand: Krohne

OPTIFLEX 1100 C is a 2-wire TDR level meter for measuring distance, level, volume and mass of liquids and solids.

Its simple, compact design allows service technicians to quickly assemble the probe and attach it to a threaded connection.

It is an affordable solution for applications that do not require a high level of accuracy and is also an excellent alternative to traditional level controls such as RF Capacitance, conductive and DP transmitters.
Features
  • 2-wire loop-powered level meter for liquids and solids
  • For general-purpose use (non-hazardous areas)
  • Measuring range up to 20 meters / 65.6 feet (liquids) and 10 meters / 32.8 feet (solids)
  • Easy menu navigation without opening the housing
  • Probes and process connections are made of stainless steel
  • For process temperatures up to 100° C (210° F) and pressures psig: 0 to 232 (kPa: 0 to 1,600, bar: 0 to 16)

Specifications

Brand

Accuracy

  • ± 0.1 % of Measured Distance, when > 33 feet (10 metres)
  • ± 0.4” (± 10 mm) when Distance ≤ 33 feet (10 metres)
  • ± 0.8” (± 20 mm)

Ambient Temperature Range

  • -40° to 80° C (-40° to 176° F)

Applications

  • Collectors & Simple Process Applications
  • Level Measurement in Buffer Tanks
  • Silo Level Monitoring in Quarrying & Agriculture
  • Volume Measurement for Storage Tanks

Approvals & Certifications

  • EN 60068-2-29, EN 60068-2-34
  • ISO 228

Approvals & Certifications

  • CE
  • EMC Directive 2004/108/EC, EN 61326-1 (2006)

BSP Connection

  • G 1” A (ISO 228)
  • G 3/4” A (ISO 228)

Cable Entry

  • 0.5 to 1.5 mm² - Capacity (Terminal)
  • 1/2” NPT (Brass/without Cable Gland)
  • M20 x 1.5 (Plastic Cable Gland Included)

Current

  • 22 mA - High (Error Signal)
  • 3.6 mA - Low (Error Signal)

Diameter

  • Coaxial Cable: 0.55” (14 mm)
  • Single Cable: 0.08” (2 mm)
  • Single Cable: 0.150” (4 mm)

Display

  • LCD Display (128 x 64 Pixels in 8-Step Greyscale with 4-Button Keypad)

Electrical Connectors

  • 2-Wire Loop-Powered

Environmental Protection

  • IP66
  • IP67

Gasket Material

  • EPDM

Measuring Range

  • 2.4 to 65.6 feet (0.73 to 20 metres) - for Liquids
  • 3.3 to 32.8 feet (1 to 10 metres) - for Solids

Media

  • Liquids
  • Solids

NPT Connection

  • 1” NPT - ASME B1.20.1
  • 3/4” NPT (ASME B1.20.1)

Operating Pressure

  • psig: -14.5 to 232 (kPa: -100 to 1,600, barg: -1 to 16)

Operating Temperature

  • -50° to 100° C (-58° to 212° F)

Output

  • 3.8-20.5 mA
  • 4-20 mA

Power Supply

  • 14-30 Vdc

Pressure Range

  • barg: 0 to 16
  • kPa: 0 to 1,600
  • psig: 0 to 232

Process Connection Material

  • 316L Stainless Steel, 1.4404

Process Temperature

  • 0° to 100° C (32° to 210° F)

Repeatability

  • ± 0.08” (± 2 mm)

Resolution

  • ± 1 µA
  • 0.04” (1 mm)

Sensor, Probe Length

  • Maximum

Sensor, Probe Material

  • Coaxial Cable: 316L Stainless Steel, 1.4404
  • Single Cable: 316 Stainless Steel 1.4401

Storage Temperature

  • -50° to 85° C (-60° to 185° F)

Viscosity

  • Coaxial: ≤ 500 MPas
  • Single Cable: 10,000 MPas
