DK-LOK Metering Valve, VM 1D/3D/6D Series
Images are representations only.

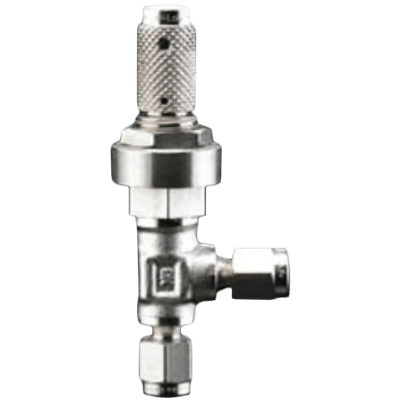

VM 1D/3D/6D Series Metering Valve

Brand: DK-LOK
Request Information
Favorite

Specifications
  • Slotted handle allows flow setting adjustment with a screwdriver
  • Lock screw locks out flow setting
  • Stem threads are isolated from system fluid
  • Handle stop mechanically helps prevent damage to stem and orifice
  • Stem O-ring seals system fluids
  • Tapered stem tip controls gas or liquid flow rates accurately
  • Body materials are forged stainless steel 316 or brass
  • Straight and angle patterns
  • Standard panel mounting

Specifications

Brand

Approvals & Certifications

  • ABS
  • ASME N, NPT, NS
  • BV
  • CE
  • CRN
  • DNV GL
  • KHNP
  • KR
  • LLOYD
  • NK
  • TÜV NORD

Enclosure, Body Material

  • 316 Stainless Steel (F316 / A182)
  • Brass (C37700 / B283)

NPT Connection

  • 1/4” NPT Male
  • 1/8” NPT Female
  • 1/8” NPT Male

Seat / Seal Material

  • Body Seal: PTFE
