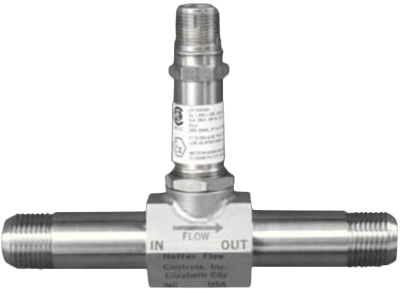

HO Series Autoclave Gas Turbine Flowmeter
Brand: Hoffer Flow ControlsSpecifications
- Maximum working pressure of 10,000, 15,000 and 20,000 psi dependent upon line size
- Outstanding accuracy
- Provides wide flow ranges (10:1 to 100:1 turndown ranges available)
- Autoclave® end connections
Specifications
Brand
Approvals & Certifications
- ATEX: EX II 2 GD Ex d TD IIC, IP66/68
- CE
- CSA: Class I, Div. 1, Groups A, B, C, D, Class II, Div. 1, Groups E, F, G, Class III, Type 4X
- FM: Class I, Div. 1, Groups A, B, C, D, Class II/III, Div. 1, Groups E, F, G, Type 4X
- IEC EX D IIC IP68
- PED
Bearing Material
- Ceramic Hybrid Ball Bearings
Cone & Thread Connection
- 1” Autoclave Typical HP Male Thread (P/N SF1000CX)
- 3/4” Autoclave Typical HP Male Thread (P/N SF750CX)
Enclosure, Body Material
- 316 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP66
- IP68
Temperature Range
- -267.8° to 148.9° C (-450° to 300° F)
