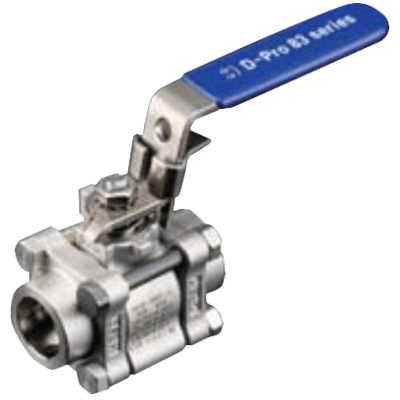

DK-LOK Swing-Out Ball Valve, V83 Series
Images are representations only.

V83 Series Swing-Out Ball Valve

Brand: DK-LOK
Request Information
Favorite

Specifications
  • Pressure and temperature compensation seat design
  • Swing-out design for fast and easy maintenance with the valve in-line
  • Chevron packing design
  • 2-way (on-off) valves with quarter-turn actuation

Specifications

Brand

Approvals & Certifications

  • ABS
  • ASME N, NPT, NS
  • BV
  • CE
  • CRN
  • DNV GL
  • KHNP
  • KR
  • LLOYD
  • NK
  • TÜV NORD

BSP Connection

  • 1” BSPT Female - ISO
  • 1/2” BSPT Female - ISO
  • 1/4” BSPT Female - ISO
  • 3/4” BSPT Female - ISO

Enclosure, Body Material

  • Carbon Steel (WCB / A216)
  • Stainless Steel (CF3M/A351)

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT Female
  • 1/8” NPT Female
  • 3/4” NPT Female
  • 3/8” NPT Female

Seat / Seal Material

  • Seat: PEEK
  • Seat: PTFE (Reinforced, Virgin, Carbon)
  • UHMWPE

Welded Connection

  • 1” Pipe Butt Weld End - Schedule 10, 40, 80
  • 1” Tube & Pipe Socket Weld End
  • 1/2” Pipe Butt Weld End - Schedule 10, 40, 80
  • 1/2” Tube & Pipe Socket Weld End
  • 1/4” Pipe Butt Weld End - Schedule 10, 40, 80
  • 1/4” Tube Socket Weld End
  • 3/4” Pipe Butt Weld End - Schedule 10, 40, 80
  • 3/4” Tube & Pipe Socket Weld End
  • 3/8” Pipe Butt Weld End - Schedule 80
  • 3/8” Tube Socket Weld End

Documentation

Data Sheets
