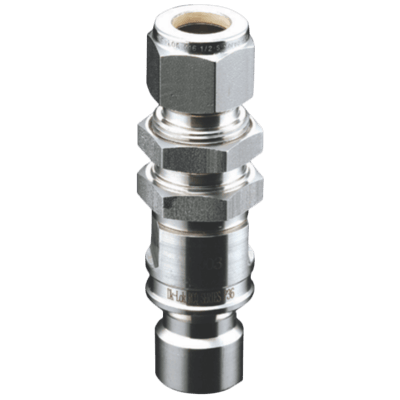

RCQ Series Receptacle
Brand: DK-LOKDK-LOK RCQ series receptacles fully comply with and are certified to the ANSI/AGA/CGA/ NGVl and ECE R110 standards for Compressed Natural Gas Vehicles (NGV) fueling connection devices.
They are designed for permanent mounting on a compressed natural gas vehicle (NGV).
DK-LOK RCQA receptacles utilize the NGV l profile which allows complete interchangeability to any fueling nozzles conforming to the NGV 1 standard.
Features- RCQA series Receptacle design to meet the NGVl profiles and delivered with integrated non-contact check valve
- RCQA series Receptacle complies with NGVl in dimension and performance
- RCQB series is specifically designed for CNG refuelling of bus and truck and delivered with integrated particle filter of 50 micron and non-contact check valve
- RCQA and RCQB series are for fast-fill and time-fill dispensing
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- RWTÜV
BSP Connection
- 1/2” BSPP Female (ISO 228-1)
- 1/2” BSPP Male (ISO 228-1)
Enclosure, Body Material
- 316 Stainless Steel - ASTM A276
SAE Connection
- 7/8”-14 SAE Female Boss J1926
- 7/8”-14 SAE Male J514
- 9/16”-18 SAE Male J514
Temperature Range
- -40° to 120° C (-40° to 250° F)
