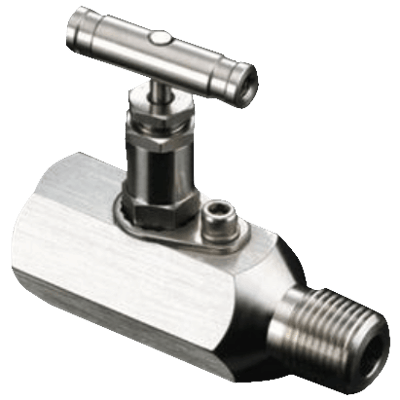

DK-LOK Hex. Body Needle Valve, V46A Series
Images are representations only.

V46A Series Hex. Body Needle Valve

Brand: DK-LOK
Request Information
Favorite

Specifications
  • Packing bolt permits packing adjustment externally
  • Chevron PTFE packing design provides far improved sealing integrity
  • Packing below stem threads is to isolate threads from system fluid and lubricant washout
  • Non-rotating stem tip at closure for long-life and leak-tight shutoff
  • Lock plate ensures the valve fastened to the body
  • NACE MR0175/ISO 15156-3 applicable

Specifications

Brand

Approvals & Certifications

  • ABS
  • ASME N, NPT, NS
  • BV
  • CE
  • CRN
  • DNV GL
  • KHNP
  • KR
  • LLOYD
  • NK
  • TÜV NORD

Enclosure, Body Material

  • 316 Stainless Steel - ASTM A276, A479
  • Carbon Steel (JIS G4051)

NPT Inlet

  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 3/8” NPT Female

NPT Outlet

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/8” NPT Female

Packing Material

  • Grafoil
  • PTFE
