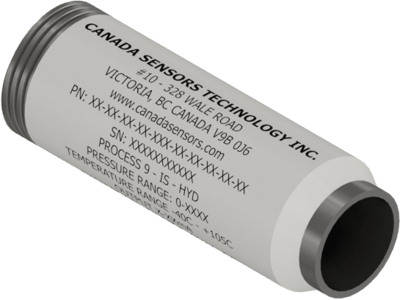

Images are representations only.
Increased Safety Differential Pressure Transmitter - Process 9-HYD-IS
Brand: Canada Sensors Technology Inc
Canada Sensors Technology Inc. offers an affordable solution with the Process 9-IS-HYD Differential Pressure Transmitter without sacrificing quality or longevity of use.
Features- Increased Safety for Class I, Div. 2, Zone 2 Hazardous Locations and Hydrogen Service
- 4 – 20 mA Two Wire, Voltage, MODbus, CANbus, J1939, USB, Ethernet
- 0.25% BSL Accuracy
- Zero & Span Function
- > 50 million Cycles
- Line Pressure Ranges to 1,000 PSI
- Differential Pressures from 0 – 2 PSID to 0 – 200 PSID
- Heavy Duty 316SS Powder Coated Canister
- Maximum Operating Temperature -40° to +95° C
- Ingress Protection IP65 (up to IP67 on request)
- Multiple Electrical Connectors & Housings Available
- Multiple Process Connection Materials & Connection Threads Available
- Laser Engraved Product Information
- RoHS Compliant
- 2 Year Conditional Warranty (Serial Number Traceability)
- Unparalleled Value
Specifications
Accuracy
- 0.25 % FSO
- Temperature: 1 % FSO @ +50° C
Stability
- < 0.1 % Full ScaleO/Year
Operating Temperature
- -40° to +95° C
Storage Temperature
- -55° to +125° C
Differential Pressure
- 0 - 2 PSID to 0 - 200 PSID
Ingress Protection
- IP65
- Up to IP67 on request
Pressure Cycle
- > 100 Million
Over Range Protection
- 2 x FSO
Burst Pressure
- 5 x FSO
Excitation
- 10-28 Vdc
Communication
- 4-20 mA, 0-5 Vdc or 0-10 Vdc or Ratio Metric, RS-485-Modbus, CANopen, J939
Current Consumption
- 5 mA
Zero Offset/Span Tolerance
- 0.5 % FSO
Output Load
- 9 Volts typical @ 24 VDC 750 OHMS
Process Connection
- 1/4" MNPT
- 1/4" FNPT
- 1/2" MNPT
- 1/2" FNPT
- G-1/2"
- G-1/4"
Electrical Connection
- Bendix Twist 6-pin (PTIH-10-6P)
- M12
- 316SS Thread-on 1/2" MNPT Solid Conduit Fitting or w/ Aluminum XP Heads
- Big-DIN 43650A
Vibration
- 25 gRMS from 20 to 2000 Hz
Shock
- 100 g, half sine, 11 mSec
Approvals & Certifications
- RoHS
- CRN - Canadian Registration Number
- ISO 9001:2015
- cLCus
