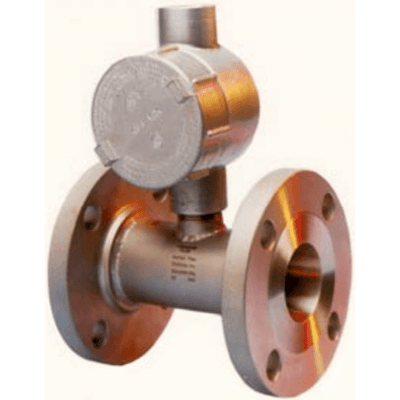

Hoffer Turbine Flowmeter, API Series
Images are representations only.

API Series Turbine Flowmeter

Brand: Hoffer Flow Controls
Request Information
Favorite

The Hoffer API Series turbine flowmeters provide extremely accurate custody transfer grade flow measurement in a bladed rotor design.

These flowmeters are typically used to measure liquid petroleum products.
Features
  • Designed for custody transfer flow applications and to be compliant with API standard Chapter 5.3
  • Optionally available with multiple pickup coils for redundancy or bi-directional flow measurement
  • Bearing types available include self-lubricating, ceramic ball bearings and Tungsten Carbide sleeve
  • Rotor assembly is hydrodynamically balanced and “floats” on fluid cushion to provide extended bearing life
  • Offered with bladed rotors in sizes 1" through 4"

Specifications

Brand

Approvals & Certifications

  • ATEX: EX II 2 GD Ex d TD IIC, IP66/68
  • CE
  • CSA: Class I, Div. 1, Groups A, B, C, D, Class II, Div. 1, Groups E, F, G, Class III, Type 4X EX D IIC, Class I, Zone 1, IP66
  • FM: Class I, Div. 1, Groups A, B, C, D, Class II/III, Div. 1, Groups E, F, G, Type 4X
  • IEC EX D IIC IP68
  • PED

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP66
  • IP68

Flange Material

  • 304 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • Carbon Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 1500#
  • 1-1/2” (DN 40) - 2500#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - 600#
  • 1-1/2” (DN 40) - 900#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 1500#
  • 1” (DN 25) - 2500#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - 600#
  • 1” (DN 25) - 900#

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 1500#
  • 2-1/2” (DN 65) - 2500#
  • 2-1/2” (DN 65) - 300#
  • 2-1/2” (DN 65) - 600#
  • 2-1/2” (DN 65) - 900#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 1500#
  • 2” (DN 50) - 2500#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - 600#
  • 2” (DN 50) - 900#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 1500#
  • 3” (DN 80) - 2500#
  • 3” (DN 80) - 300#
  • 3” (DN 80) - 600#
  • 3” (DN 80) - 900#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 1500#
  • 4” (DN 100) - 2500#
  • 4” (DN 100) - 300#
  • 4” (DN 100) - 600#
  • 4” (DN 100) - 900#

NACE & NIST

  • NACE
