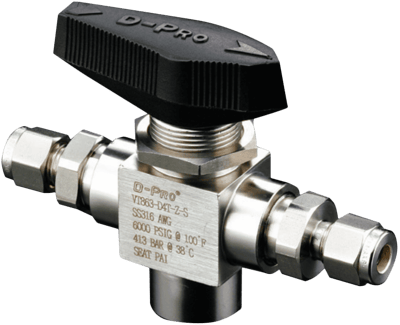

VT86 Series Trunnion Ball Valve
Brand: DK-LOKSpecifications
- The Trunnion ball valve is featured by blowout-proof design with cylindrical extensions at the top and bottom of the ball
- The trunnion prevents the ball from shifting and permits the ball to rotate on a vertical axis
- Integral ball stem machined from single piece of bar stock eliminates the backlash during handle actuation
- Panel mounting nut is standard permitting valve to panel or actuator
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT, NS
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- TÜV NORD
Direct Mount
- No
Enclosure, Body Material
- 316 Stainless Steel - ASTM A276, A479
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 1/8” NPT Female
Seat / Seal Material
- Seat: PCTFE - VT86/VCT86 Series
- Seat: PEEK
- Seat: PTFE - VT86/VCT86 Series
Valve Type
- Manual
