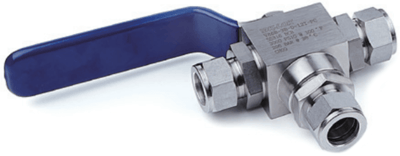

V86/VC86 Series Ball Valve
Brand: DK-LOK
Specifications
- High pressure up to psi: 10,000 (kPa: 68,900, bar: 689)
- Blowout proof design with internally loaded stem
- Handle indicates the flow direction
- Positive stop with a robust stop pin
- High flow rate with maximum orifice
- Various end ports including DK-Lok tube port
- Various flow control with side and bottom inlet port on 3-way diverter valves
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT, NS
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- TÜV NORD
Enclosure, Body Material
- 316 Stainless Steel - ASTM A276, A479
NPT Connection
- 1” NPT Female
- 1” NPT Male
- 1/2” NPT Female
- 1/2” NPT Male
- 1/4” NPT Female
- 1/4” NPT Male
- 3/4” NPT Female
- 3/4” NPT Male
- 3/8” NPT Female
- 3/8” NPT Male
Port
- Full
Seat / Seal Material
- Seat: PCTFE - V86 Series
- Seat: PEEK - VC86 Series
- Seat: PVDF - V86 Series
Valve Type
- Manual
